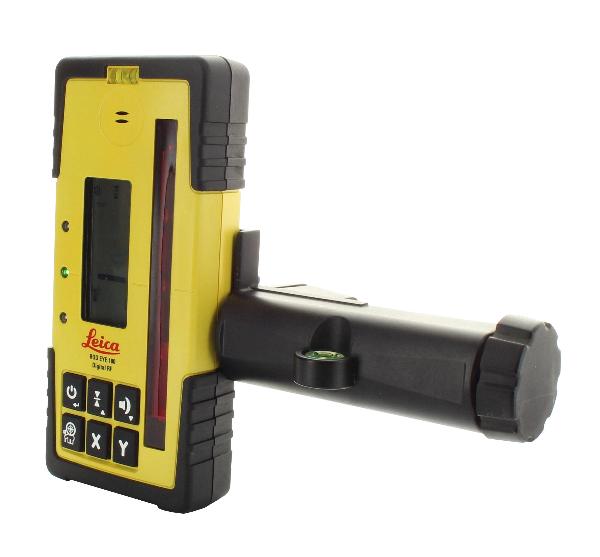

Laser detector Leica Rod-Eye 180 Digital RF
2014 - 2018
With integrated radio remote control function and digital reading
With the Smart Target function, this laser detector offers automatic slope detection and monitoring with radio communication for all applications involving slopes, facades, batter boards and much more.
The large numbers on the double-sidedLCD display are clear and easy to read. The 21-step arrow display serves as a reference when establishing the connection with the laser beam.
Features
- SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
- SmArt Lock allows real-time monitoring of the laser plane
- Switching the reception sensitivity (coarse/fine)
- Shock and drop protected by encased housing
- With optical and acoustic signal
- With menu for easy operation
- With integrated spirit level for optimal alignment
- With display on front and back
- With 3 LEDs (red, green, blue) as reference for the receiver position
- Digital readout in mm, cm, inches, inch breaks or feet
- Easy to attach to measuring rods thanks to universal holder
- Capture function allows receiving and saving of altitude values at the push of a button
- Automatic switch-off after 10 minutes
- Acoustic signal in 4 different volume levels
- Acoustic signal can be deselected on request
- For rotating lasers with a wavelength of 610 to 780 nm
- Battery status indicator for timely battery replacement.
- No interference from construction site or signal lights thanks to stroboscope protection.
Video
Specifications
|
|
Dimensions
|
173 x 76 x 29 mm
|
|
|
Measurement accuracy
|
0,5 mm / 1 mm / 2 mm / 3 mm / 5 mm
|
|
|
Operating time in hours
|
50
|
|
|
Operating temperature
|
-20°C bis +50°C
|
|
|
Storage temperature
|
-40°C bis +70°C
|
Scope of Delivery
- Batteries
- Universal cradle
Capture function allows receiving and saving of altitude values at the push of a button
SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
