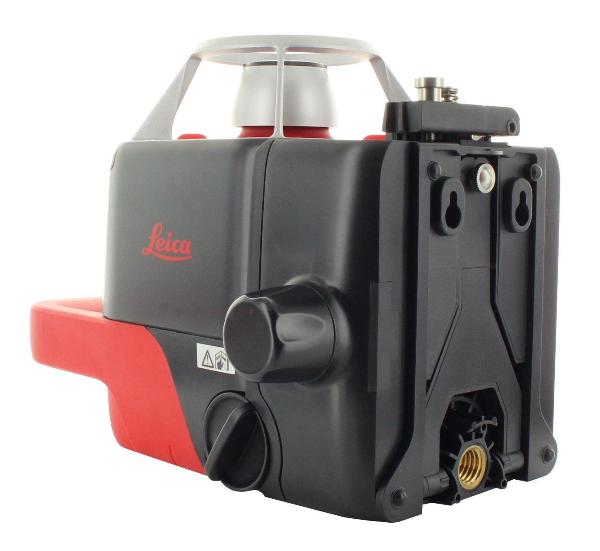

Leica Roteo 35G rotating laser
2011 - 2017
The versatile rotating lasers in interior construction for work on ceilings, floors and walls.
Especially indoors, the Roteo stands out due to its outstandingly visible laser line. Added to this is the simple and intuitive operation of the rotating laser.
For leveling and alignment, you are ideally positioned with the Leica Roteo.
Features
- Can be used on tripods and wall mounts with 5/8" thread.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Control of the motorized wall mount by remote control.
- Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Rainproof housing.
- Positioning of the device and vertical plumbing with the plumb point.
- Tracking of laser lines and laser points.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Display of slopes by switching off the self-levelling function.
- Better visibility of the laser line through the adjustable rotation speed.
- Better visualization of the laser line indoors due to the green laser diode.
- Working in bright light and at long distances in conjunction with laser detectors.
Video
Specifications
|
|
Working area with laser detector
|
300 m
|
|
|
Self-levelling range horizontal
|
4,5°
|
|
|
Vertical self-levelling range
|
4,5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 15, 300, 450, 600
|
|
|
Remote control reception range
|
30 m
|
|
|
Operating time in hours
|
25 / 40
|
|
|
Operating temperature
|
0°C - + 40°C
|
|
|
Storage temperature
|
-20°C - +70°C
|
Scope of Delivery
- Suitcase
- Battery
- Battery charger
- Remote control
- target plate
- laser glasses
- Operating instructions
- Battery holder
- Motorized wall mount
Better visualization of the laser line indoors due to the green laser diode.
Control of the motorized wall mount by remote control.
