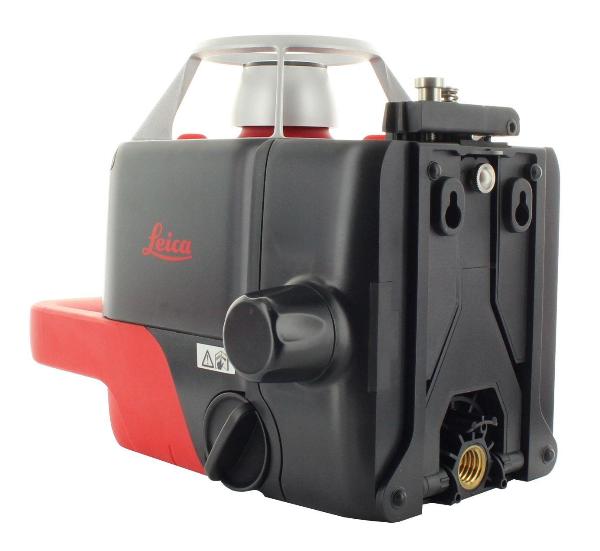

Leica Roteo 35WMR rotating laser
2013 - 2017
The versatile rotating lasers in interior construction for work on ceilings, floors and walls.
Especially indoors, the Roteo stands out due to its outstandingly visible laser line. Added to this is the simple and intuitive operation of the rotating laser.
For leveling and alignment, you are ideally positioned with the Leica Roteo.
Features
- Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Working in bright light and at long distances in conjunction with laser detectors.
- Rainproof housing.
- Can be used on tripods and wall mounts with 5/8" thread.
- Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Better visibility of the laser line through the adjustable rotation speed.
- Tracking of laser lines and laser points.
- Positioning of the device and vertical plumbing with the plumb point.
- Control of the motorized wall mount by remote control.
Video
Specifications
|
|
Working area with laser detector
|
300 m
|
|
|
Self-levelling range horizontal
|
4,5°
|
|
|
Vertical self-levelling range
|
4,5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 15, 300, 450, 600
|
|
|
IP protection class
|
IP 54
|
|
|
Operating time in hours
|
160 / 50
|
|
|
Operating temperature
|
0°C - + 40°C
|
|
|
Storage temperature
|
-20°C - +70°C
|
Scope of Delivery
- target plate
- Remote control
- laser glasses
- Batteries
- Battery holder
- Battery charger
- Suitcase
- Operating instructions
- Battery
- Motorized wall mount
