0,00 €
Recommended retail price without VAT.
Article No. LEI352039
Buy safely

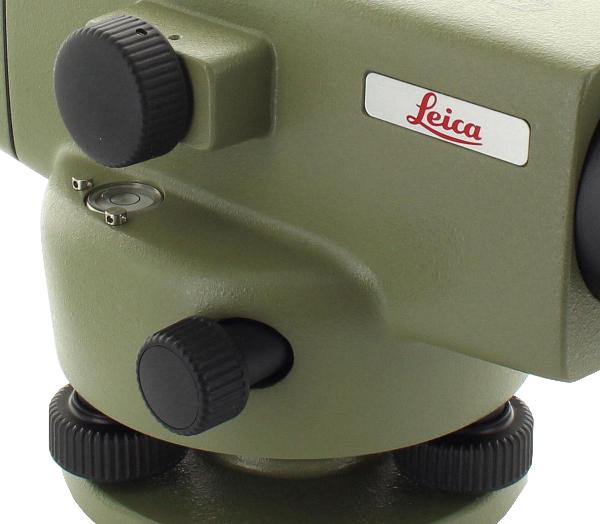

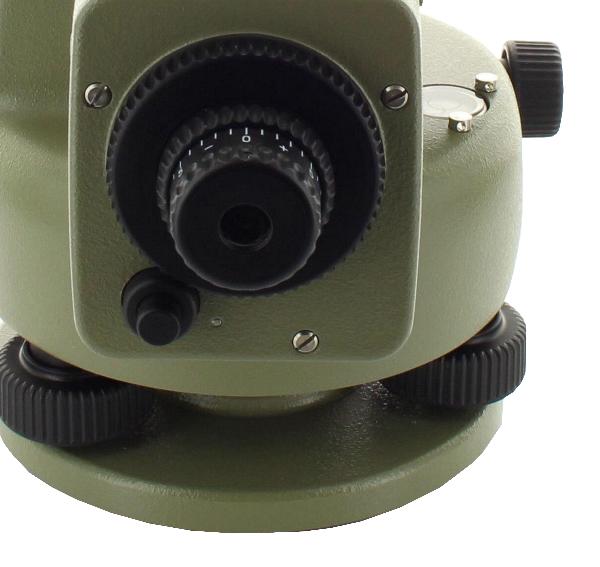

Leica NAK2 surveyor's level
2014 - 2017
Precision level with the highest accuracy.
This automatic level meets the highest requirements for accuracy, comfort and reliability. It can be used for all leveling applications. Be it height measurement on a construction site, measurements in civil engineering or geodesy.
This precision level is also the first choice for the assembly of industrial plants.
Features
- Automatic alignment in the horizontal plane by means of pendulum compensator.
- Easy setup via the mirror sight.
- Fast and exact aiming with the lateral fine drive.
- Easy reading with 32x magnification.
- Quick commissioning thanks to the compensator's large working range.
- Function control of the compensator at the push of a button.
Video
Specifications
|
|
District division
|
360° / 400 Gon
|
|
|
Shortest target distance
|
<1,6 m
|
|
|
Standard deviation for 1km double levelling
|
0,7 mm
|
|
|
Objective lens diameter
|
45 mm
|
|
|
Field of view diameter on 100m
|
2,2 m
|
|
|
Compensator Working range
|
~30'
|
|
|
Sensitivity of the spirit level
|
8'/2 mm
|
|
|
Operating temperature
|
–20°C - +50°C
|
|
|
Storage temperature
|
–40°C - +70°C
|
Scope of Delivery
- Suitcase
- Operating instructions
Automatic alignment in the horizontal plane by means of pendulum compensator.
Function control of the compensator at the push of a button.

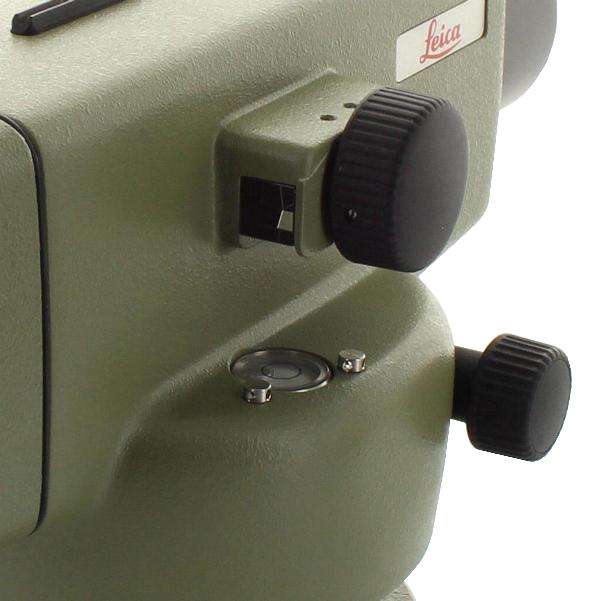

Easy setup via the mirror sight.
Fast and exact aiming with the lateral fine drive.
