Leica Disto D810 laser distance meter
2013 - 2018

Measure in the photo and document with the integrated camera.

Mögliche Liefertermine	Ihr Preis

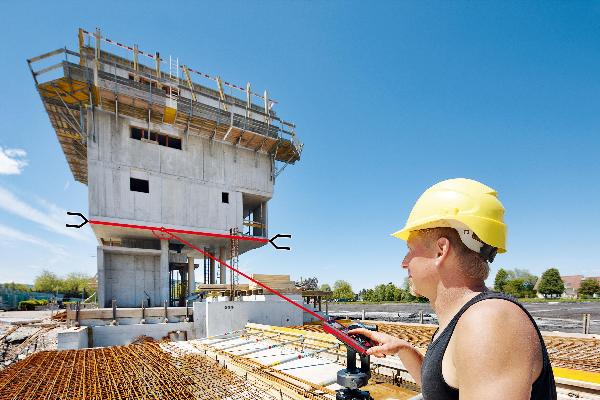

The world's first laser distance meter with touchscreen for fast and intuitive operation. Measurement and construction site situations can be photographed with the integrated camera.

The determination of distances in a captured photo is also possible. Only the distance to the object is measured. Afterwards, the desired result can be marked with arrows in the display and the measured value appears.

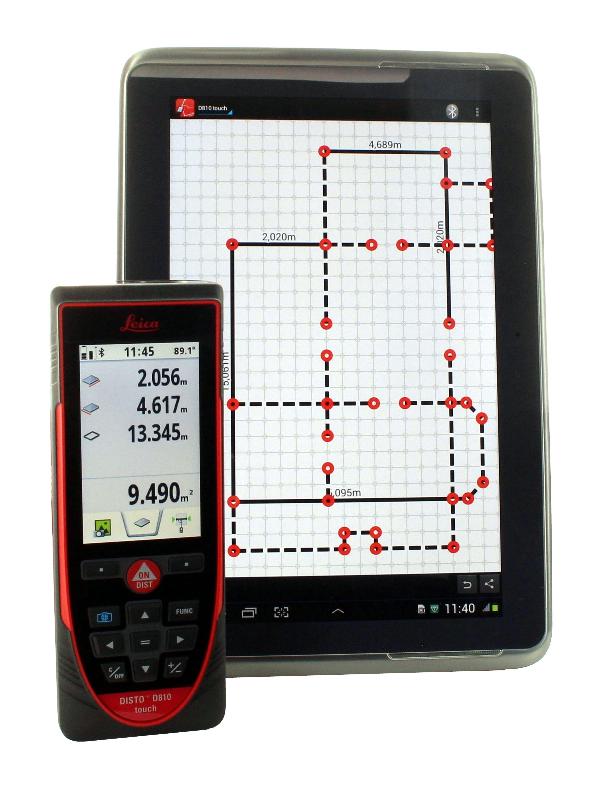

The images can be transferred to a computer via the USB interface. Measurement data can also be transferred via Bluetooth® Smart. This allows quick sketching of floor plans or even dimensioning of photos on the smartphone or tablet with iOS or Android operating systems.

Accessories
Warranty / Months : 24
repair at a flat rate of 385,00 €
bei Sturzschaden oder nach Ablauf der Garantie.

Features

Fast and intuitive operation via the touch screen.
Measure widths, heights and areas directly in the photo.
Documentation of construction site situations with a digital photo thanks to the camera function.
Stake out distances of the previously stored measuring lengths with the stake out function.
Adding and subtracting measured values.
Measure heights with height tracking even without a reflection point.
Automatic calculation of areas and volumes.
Clearly readable and illuminated display.
Determine roof slopes from large distances with the double inclination measurement.
Distance measurement up to 200 m.
Simple calculation of areas and solid angles thanks to triangle function.
Determination of the diagonals of a room with the minimum/maximum measurement.
Calculate facade areas and roof slopes using trapezoidal measurement.
Create terrain profiles with the height profile measurement.
Indirect height and distance measurement thanks to the Pythagoras function.
Measurements in sunlight and at long distances with digital Pointfinder and 4x zoom.
Multifunctional end piece with automatic detection.
Measure inclinations up to 360°.
Measure distances indirectly over obstacles with the SmArt Horizontal Mode.
Delayed triggering of the measurements by means of a timer.
Calculate wall areas with the painter function.
Data transmission via Bluetooth SmArt (V4.0).
Automatically add or subtract defined values to all measurements with the offset function.
Measurements under unfavourable conditions such as poor reflection via the Long Range Mode.
Fast data transfer via the USB interface.
Sending measured values to any processing program thanks to keyboard mode.
