0,00 €
Recommended retail price without VAT.
Article No. LEI6003520
Buy safely

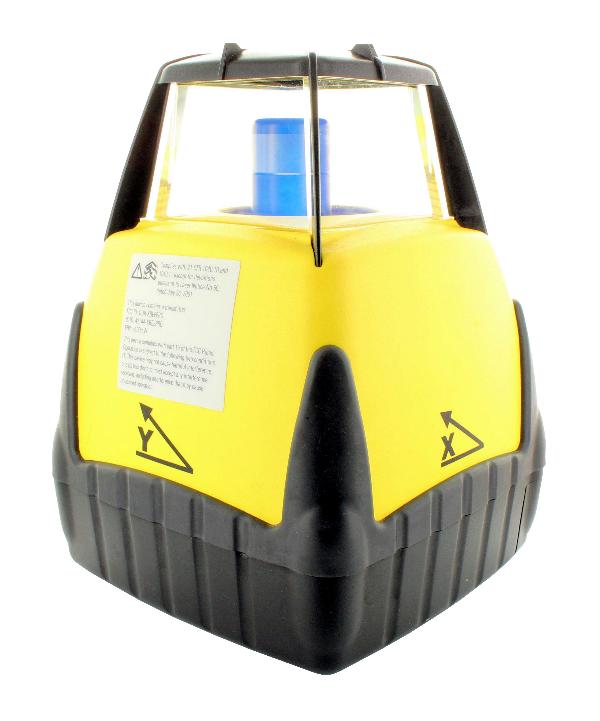

Leica Rugby 410DG rotating laser with Rod-Eye 140 Classic
Leveling or single and dual slope measurement at highest precision over long distances with invisible laser beam
The automatic slope laser has a self-leveling function and can be used for small and large jobs alike. It is ideal for all applications where precise grade control is required, such as parking lot layout, roadways, and runways.
Features
- Can be used on tripods and wall mounts with 5/8" thread.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- SmArt Lock allows real-time monitoring of the laser plane
- Rainproof housing.
- Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy. - Long operating time thanks to integrated battery pack.
- Horizontal and vertical self-levelling by servomotors up to 5° inclination.

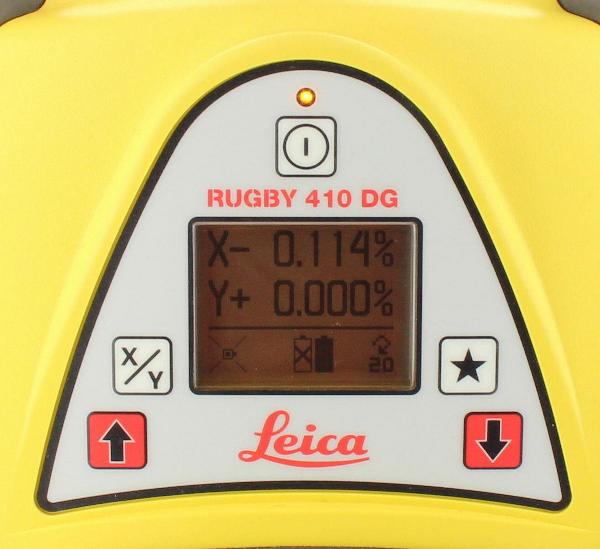

The laser automatically levels horizontal and vertical. - Digital inclination of the X and Y axis with percentage setting.
- Theft protection through personal identification on the device
- Display of slopes by switching off the self-levelling function.
- Battery status indicator for timely battery replacement.
- Work under unfavourable conditions thanks to the adjustable wind sensitivity
- Mounting of a telescopic sight in both axes
- Absolute safety through the invisible infrared laser diode.
Video
Specifications
|
Working area with laser detector
|
800 m
|
|
Self-levelling range horizontal
|
5°
|
|
Vertical self-levelling range
|
5°
|
|
Levelling accuracy
|
1,6 mm / 30 m
|
|
Rotation speeds rpm
|
300, 600, 900, 1200
|
|
IP protection class
|
IPX-7
|
|
Remote control reception range
|
225 m
|
|
Operating time in hours
|
100
|
|
Operating temperature
|
- 20 ° - + 50 ° C
|
|
Leica Article No.
|
6003520
|

Absolute safety through the invisible infrared laser diode.
Digital inclination of the X and Y axis with percentage setting.
SmArt Lock allows real-time monitoring of the laser plane
