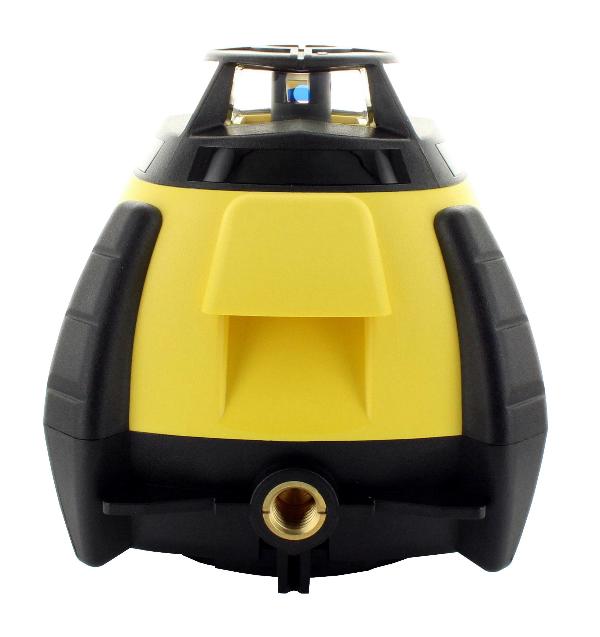

Leica Rugby 55 rotating laser with battery, charger and Rod-Eye Basic
2007 - 2018
The robust, reliable and easy-to-use Rugby for interior finishing.
The Rugby for indoor use supports you when working on ceilings, floors and walls. Aligning components or erecting stud frames, with the Leica Rugby 55 you can master almost any task.
If required, the rotating laser can also be used outdoors at any time.
Features
- Can be used on tripods and wall mounts with 5/8" thread.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Rainproof housing.
- Positioning of the device and vertical plumbing with the plumb point.
- Tracking of laser lines and laser points.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy. - Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Display of slopes by switching off the self-levelling function.
- Better visibility of the laser line through the adjustable rotation speed.
- Battery status indicator for timely battery replacement.
- Working in bright light and at long distances in conjunction with laser detectors.
Video
Specifications
|
|
Working area with laser detector
|
300 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Vertical self-levelling range
|
5°
|
|
|
Levelling accuracy
|
0,9 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 120, 300, 600
|
|
|
Remote control reception range
|
40 m
|
|
|
Operating time in hours
|
50 / 30
|
|
|
Operating temperature
|
-20°C - +50°C
|
|
|
Storage temperature
|
-40°C - +70°C
|
|
|
Leica Article No.
|
6003485
|
Manual tilting of the X and Y axis.
Horizontal and vertical tripod thread.
