0,00 €
Recommended retail price without VAT.
Article No. LEI6006011
Buy safely

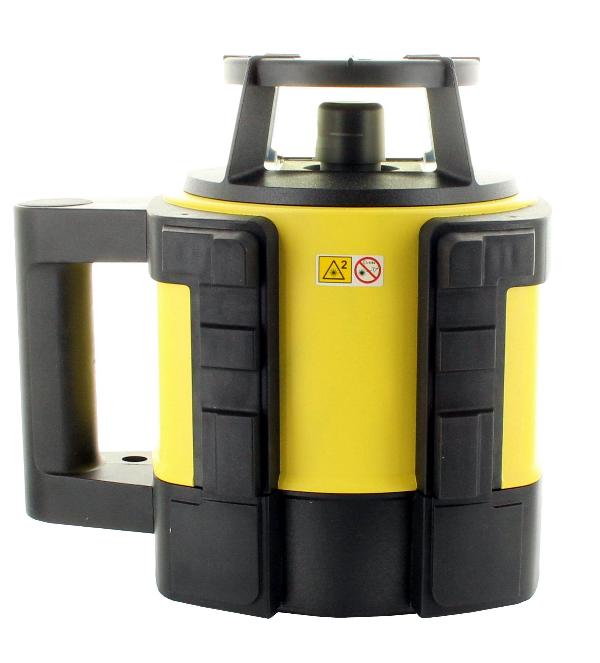

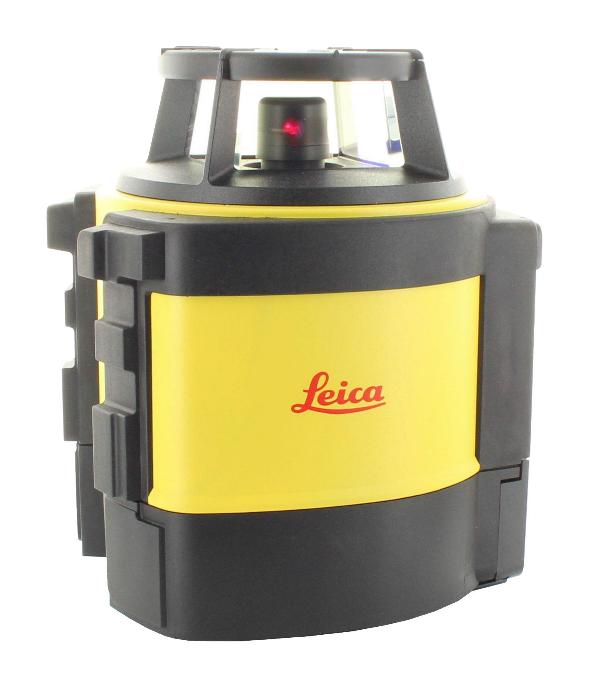

Leica Rugby 820 rotating laser with batteries and Rod-Eye 140 Classic
Horizontal fully automatic machine with manual adjustment of inclinations in one or two axes.
Ideal tool for applications in concreting, laying foundations or formwork work.
Features
- Can be used on tripods and wall mounts with 5/8" thread.
- Rainproof housing.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Working in bright light and at long distances in conjunction with laser detectors.
- Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Horizontal self-levelling by servomotors up to 5° inclination.
Video
Specifications
|
|
Working area with laser detector
|
800 m
|
|
|
Self-levelling range horizontal
|
6°
|
|
|
Levelling accuracy
|
1,5 mm / 30 m
|
|
|
Operating time in hours
|
60
|
|
|
Operating temperature
|
-20 °C - +50 °C
|
|
|
Storage temperature
|
-40 °C - +70 °C
|
|
|
Leica Article No.
|
6006011
|
Horizontal self-levelling by servomotors up to 5° inclination.
Rainproof housing.
Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
