Article No. LEI6006012
Buy safely

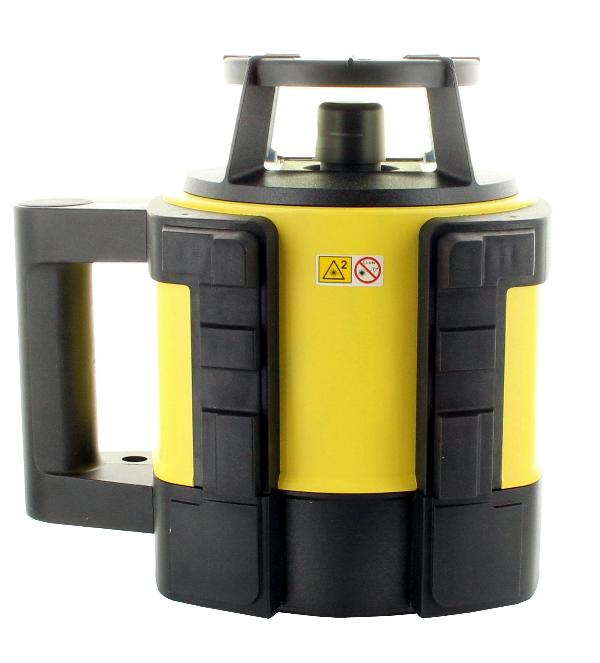

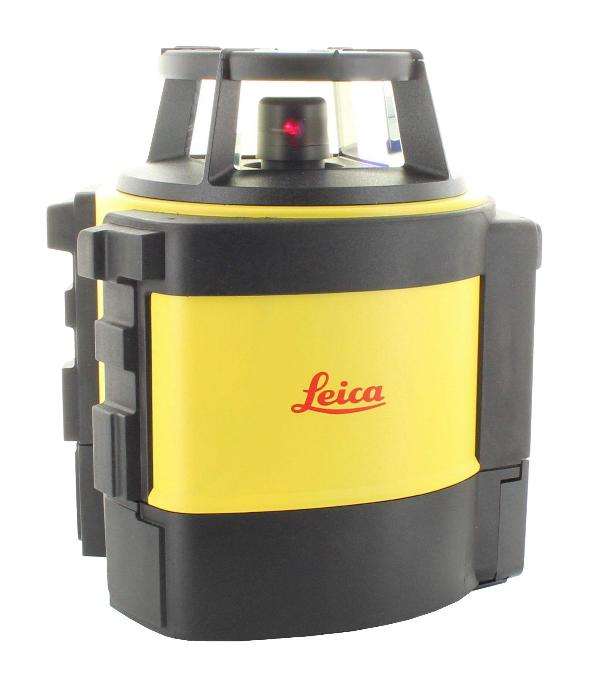

Leica Rugby 820 rotating laser with Li-Ion battery, charger and Rod-Eye 140 Classic
2016 - 2016
Horizontal fully automatic machine with manual adjustment of inclinations in one or two axes.
Ideal tool for applications in concreting, laying foundations or formwork work.
Features
- SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
- Horizontal self-levelling by servomotors up to 5° inclination.
- Display of slopes by switching off the self-levelling function.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Working in bright light and at long distances in conjunction with laser detectors.
- Rainproof housing.
- SmArt Lock allows real-time monitoring of the laser plane
- Rainproof housing.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Can be used on tripods and wall mounts with 5/8" thread.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Long operating time thanks to integrated Li-Ion battery.
The lithium-ion battery has a high energy density, is thermally stable and has practically no memory effect. It is the ideal battery for your everyday life on the construction site. Apart from the short charging times, the long service life is another argument in favour of this battery. - Working in bright light and at long distances in conjunction with laser detectors.
- Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Horizontal self-levelling by servomotors up to 5° inclination.
Video
Specifications
|
|
Working area with laser detector
|
800 m
|
|
|
Working area with laser detector
|
800 m
|
|
|
Self-levelling range horizontal
|
6°
|
|
|
Self-levelling range horizontal
|
6°
|
|
|
Levelling accuracy
|
1,5 mm / 30 m
|
|
|
Levelling accuracy
|
1,5 mm / 30 m
|
|
|
Operating time in hours
|
45
|
|
|
Operating time in hours
|
45
|
|
|
Operating temperature
|
-20 °C - +50 °C
|
|
|
Storage temperature
|
-40 °C - +70 °C
|
|
|
Operating temperature
|
-20 °C - +50 °C
|
|
|
Storage temperature
|
-40 °C - +70 °C
|
|
|
Leica Article No.
|
6006012
|
Horizontal self-levelling by servomotors up to 5° inclination.
Rainproof housing.
Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
