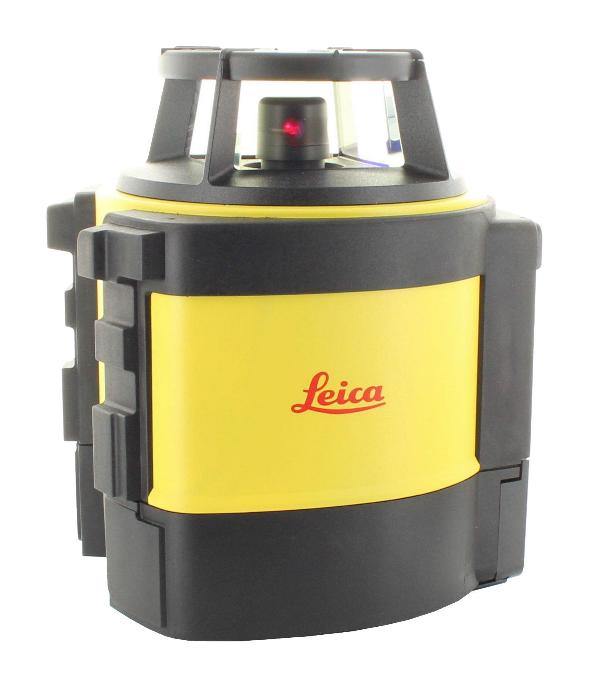

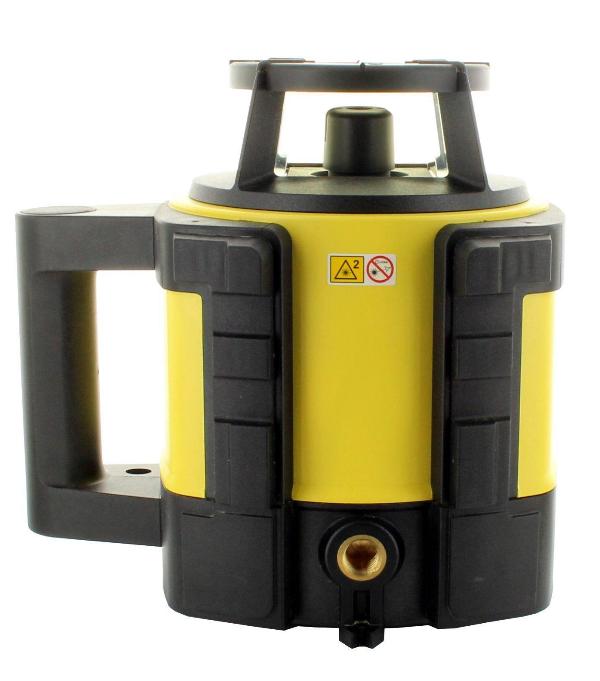

Leica Rotating Laser Rugby 840 with Batteries and Rod-Eye 180 Digital RF
2015 - 2015
Maximum user productivity for all leveling, alignment and stakeout work to be performed on the construction site.
Alignment to a desired inclination with one or two axes is performed automatically with this rotating laser at the touch of a button.
For this purpose, the laser plane can be monitored and corrected in real time. This always delivers reliable results.
Features
- Can be used on tripods and wall mounts with 5/8" thread.
- Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Rainproof housing.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Working in bright light and at long distances in conjunction with laser detectors.
- Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- SmArt Lock allows real-time monitoring of the laser plane
- Tracking of laser lines and laser points.
- Better visibility of the laser line through the adjustable rotation speed.
- SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
Video
Specifications
|
|
Working area with laser detector
|
1300 m
|
|
|
Self-levelling range horizontal
|
6°
|
|
|
Vertical self-levelling range
|
6°
|
|
|
Levelling accuracy
|
1,5 mm / 30 m
|
|
|
Rotation speeds rpm
|
0, 200, 500, 1000
|
|
|
Remote control reception range
|
200 m
|
|
|
Operating time in hours
|
60
|
|
|
Operating temperature
|
-20 °C - +50 °C
|
|
|
Storage temperature
|
-40 °C - +70 °C
|
|
|
Leica Article No.
|
6006023
|
Scope of Delivery
- Suitcase
-
- Batteries
- Operating instructions
