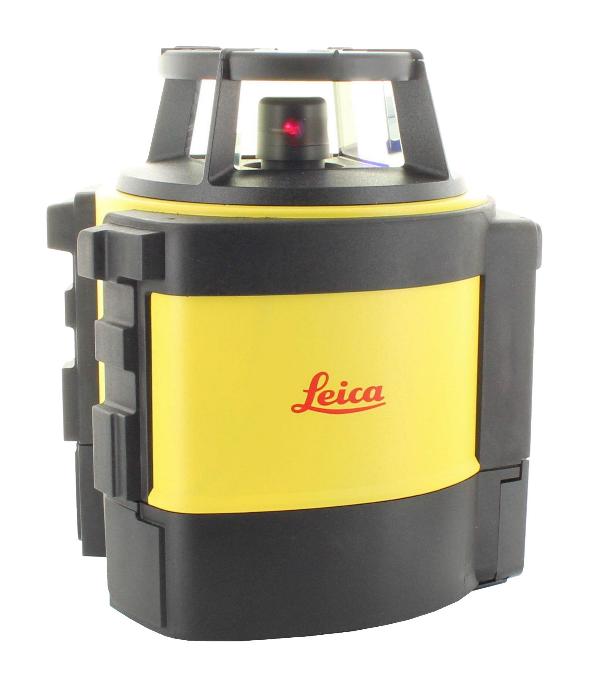

Leica Rugby 840 rotating laser with Li-Ion battery, charger and Rod-Eye 180 Digital RF
2014 - 2017
Maximum user productivity for all leveling, alignment and stakeout work to be performed on the construction site.
Alignment to a desired inclination with one or two axes is performed automatically with this rotating laser at the touch of a button.
For this purpose, the laser plane can be monitored and corrected in real time. This always delivers reliable results.
Features
- SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
- Can be used on tripods and wall mounts with 5/8" thread.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access. - Can be used on tripods and wall mounts with 5/8" thread.
- Horizontal and vertical tripod thread.

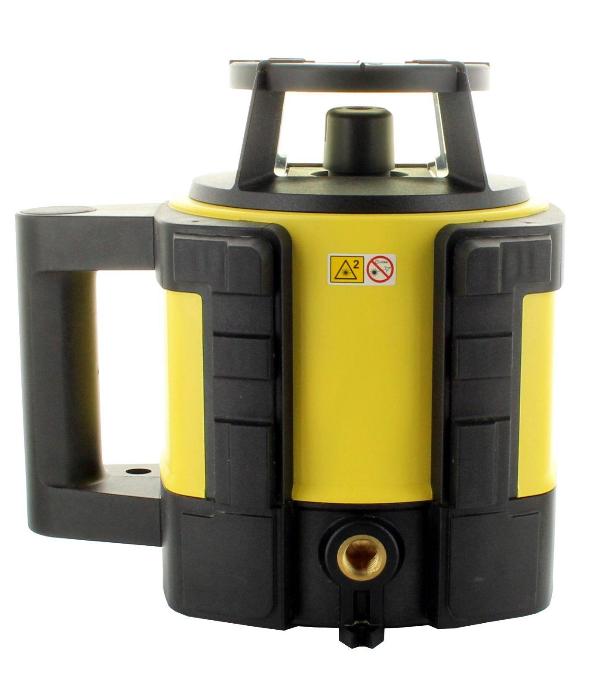

With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - SmArt Lock allows real-time monitoring of the laser plane
- Rainproof housing.
- SmArt Lock allows real-time monitoring of the laser plane
- Rainproof housing.
- Tracking of laser lines and laser points.
- Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Long operating time thanks to integrated Li-Ion battery.
The lithium-ion battery has a high energy density, is thermally stable and has practically no memory effect. It is the ideal battery for your everyday life on the construction site. Apart from the short charging times, the long service life is another argument in favour of this battery. - Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Working in bright light and at long distances in conjunction with laser detectors.
- Display of slopes by switching off the self-levelling function.
- Display of slopes by switching off the self-levelling function.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Tracking of laser lines and laser points.
- Better visibility of the laser line through the adjustable rotation speed.
- Better visibility of the laser line through the adjustable rotation speed.
- Working in bright light and at long distances in conjunction with laser detectors.
- SmArt Target allows the automatic detection and monitoring of a tilt by means of two-way radio control.
Video
Specifications
|
|
Working area with laser detector
|
1300 m
|
|
|
Self-levelling range horizontal
|
6°
|
|
|
Vertical self-levelling range
|
6°
|
|
|
Levelling accuracy
|
1,5 mm / 30 m
|
|
|
Rotation speeds rpm
|
0, 200, 500, 1000
|
|
|
Remote control reception range
|
200 m
|
|
|
Operating time in hours
|
60
|
|
|
Operating temperature
|
-20 °C - +50 °C
|
|
|
Storage temperature
|
-40 °C - +70 °C
|
|
|
Leica Article No.
|
6006024
|
Scope of Delivery
- Suitcase
-
- Battery
- Battery charger
- Operating instructions
- Suitcase
-
- Battery
- Battery charger
- Operating instructions
