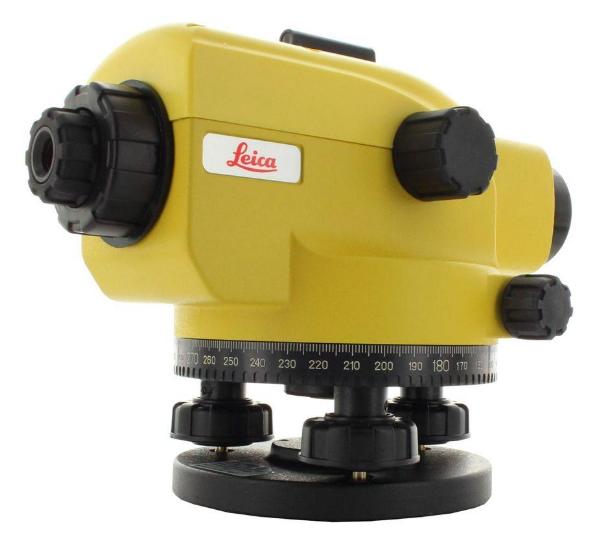

Leica Jogger 28 level
2011 - 2016
Construction level with air-damped compensator.
The air-damped compensator automatically adjusts the Leica Jogger to the horizontal. All that needs to be done first is to align the level using the circular bubble, which can be read very conveniently via the mirror sight.
The circular graduation allows you to make angle measurements in the field. The fine drive also makes it easier for you to precisely set the reading mark on the target.
Features
- Easy setup via the mirror sight.
- Fast and exact aiming with the lateral fine drive.
- Easy reading with 28x magnification.
- Automatic horizontal alignment with the air-damped compensator.
Video
Specifications
|
|
Shortest target distance
|
<1,0 m
|
|
|
Standard deviation for 1km double levelling
|
2,0 mm
|
|
|
Objective lens diameter
|
36 mm
|
|
|
Field of view diameter on 100m
|
<2,1 m
|
|
|
Sensitivity of the spirit level
|
8’/2 mm
|
|
|
Operating temperature
|
-20°C -+40°C
|
Scope of Delivery
- Suitcase
- Operating instructions
- Protective cover
- Allen key
Automatic horizontal alignment with the air-damped compensator.
Fast and exact aiming with the lateral fine drive.
