Article No. N724
Buy safely

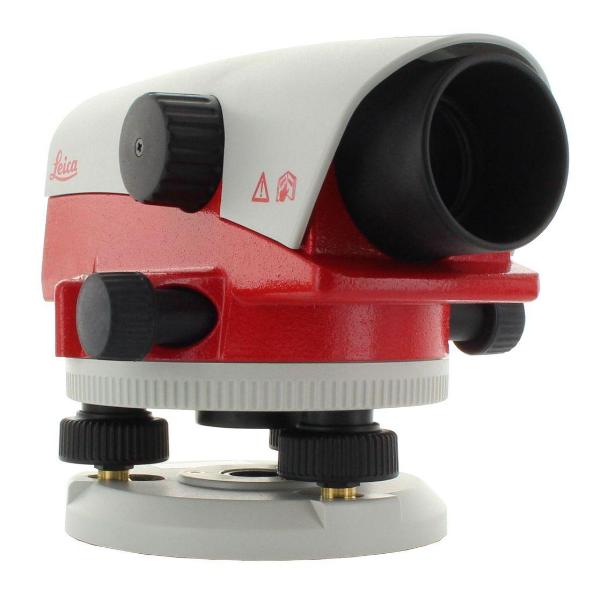

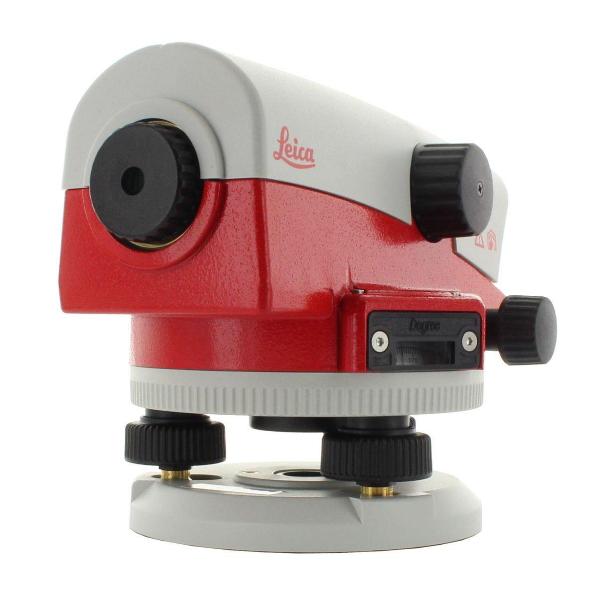

Leica NA724 level
2004 - 2017
Construction and surveyor's level impact-resistant and waterproof according to ISO 9022-33-5.
The level is characterized by its precision and robust construction. Small falls or a fall into the dirty water on the construction site do not bother this device. The housing is absolutely waterproof and dust-proof.
In addition, the circle division on this level can be easily switched between degrees and gon.
In addition, the device has a high light intensity. Thus, you can read cleanly and accurately even in difficult lighting conditions.
Features
- Automatic alignment in the horizontal plane by means of pendulum compensator.
- Easy setup via the mirror sight.
- Fast and exact aiming with the lateral fine drive.
- Easy reading with 24x magnification.
- Changeable circle division in degrees or gon
- Protection against dust and water spray (IP57).
- Drop resistance according to ISO 9022-33-5.
Video
Specifications
|
|
District division
|
360° / 400 Gon
|
|
|
Shortest target distance
|
<3,5 m
|
|
|
Standard deviation for 1km double levelling
|
2,0 mm
|
|
|
Objective lens diameter
|
36 mm
|
|
|
Sensitivity of the spirit level
|
10´/2 mm
|
|
|
Dimensions
|
19 x 12 x 12 cm
|
|
|
Operating temperature
|
-20°C - +50°C
|
|
|
Storage temperature
|
-40°C - +70°C
|
Scope of Delivery
- Suitcase
- Operating instructions
- Protective cover
- Allen key
Automatic alignment in the horizontal plane by means of pendulum compensator.
Changeable circle division in degrees or gon
Fast and exact aiming with the lateral fine drive.
