Article No. L229
Buy safely

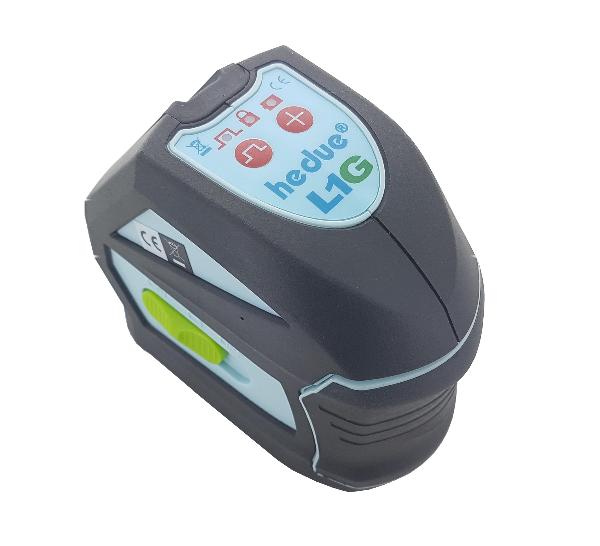

Line laser hedue L1G Set

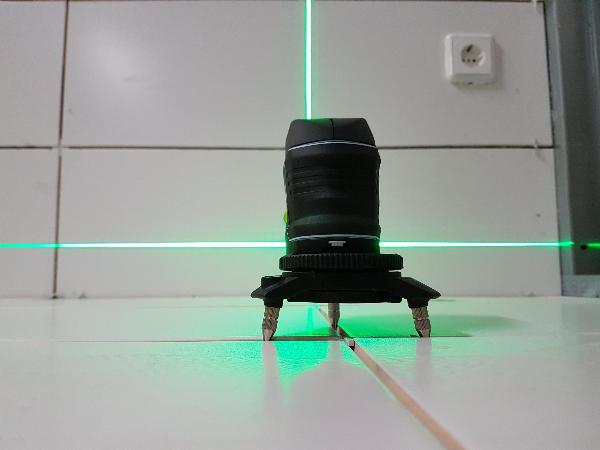

Cross line laser with green laser line for best visibility. In a set with a practical telescopic support pole.
The green laser beam is many times more visible than a red laser beam. This increases the working range to up to 30 m without a laser detector. This simplifies alignment and leveling work indoors and saves you a lot of time.
The compact line laser is designed for construction sites and impresses with its absolutely clean line reproduction. The device is very simple and intuitive to operate, yet still has many useful functions.

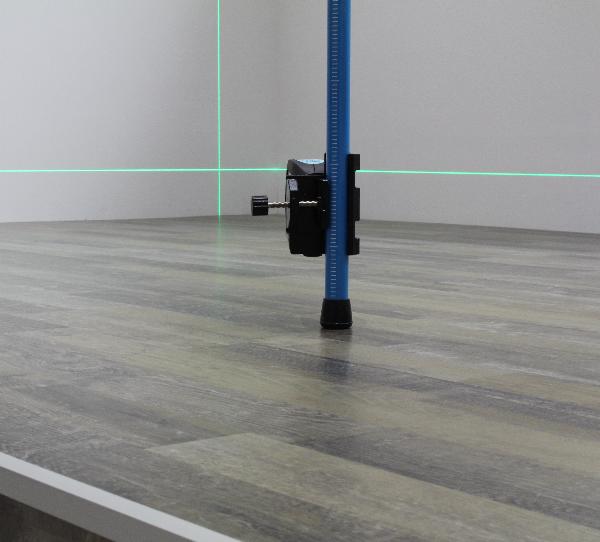

Thanks to the telescopic extension and the spring-loaded base plate, setting up the telescopic support pole is child's play. It can be installed quickly, stably and accurately in the smallest of spaces. Thanks to the quick-clamping mechanism, the device bracket can be infinitely adjusted along the entire length of the column. The rubberized floor and ceiling plates prevent scratches on sensitive floor coverings and prevent the telescopic support pole from slipping on smooth surfaces.
Warranty / Months : 24
Features
- Better visualization of the laser line indoors due to the green laser diode.
- Display of slopes by switching off the self-levelling function.
- Separate switching of the laser diodes.
- Battery status indicator for timely battery replacement.
- Working in bright light and at long distances in conjunction with laser detectors.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- A horizontal laser line for levelling tasks.
- A vertical laser line for alignment and alignment.
- Connection of all common tripods and mounts with the magnetic multifunction adapter.
- Infinitely height adjustable
- With rubberised floor and ceiling panels
- Can be used as a wall mount and vertical mount
Video
Specifications
|
Working radius without laser detector
|
15 m
|
|
Working radius with laser detector
|
50 m
|
|
Self-levelling range horizontal
|
3°
|
|
Vertical self-levelling range
|
3°
|
|
Levelling accuracy
|
3 mm / 10 m
|
|
Accuracy of the 90° angle
|
3 mm
|
|
Width of the laser line at 8m
|
3 mm
|
|
Operating time in hours
|
6
|
|
Tripod thread
|
5/8" & 1/4"
|

With rubberised floor and ceiling panels
Infinitely height adjustable
Better visualization of the laser line indoors due to the green laser diode.
Separate switching of the laser diodes.
