Article No. P140
Buy safely
Profile gauge 2x20 cm
1997 - 2015
For scanning complex contours
The profile scanner enables complex contours to be scanned quickly. The 20 cm long elements can be easily plugged together and adapted to individual requirements. The individual elements can also be connected to each other at an angle using the angle bracket included in the scope of delivery. Due to the flat and even support of the template, the scanned profile line can be easily transferred to other workpieces.
Warranty / Months : 24
Features
- Simple scanning of complex contours
- Elements are pluggable
- Can also be connected together at an angle
- The scanned profile line can be easily transferred to a workpiece thanks to the flat support
Video
Specifications
|
|
Dimensions of the styli
|
83 x 0,8 mm
|
Scope of Delivery
- Suitcase
- Key elements 2 x
- Angle connector

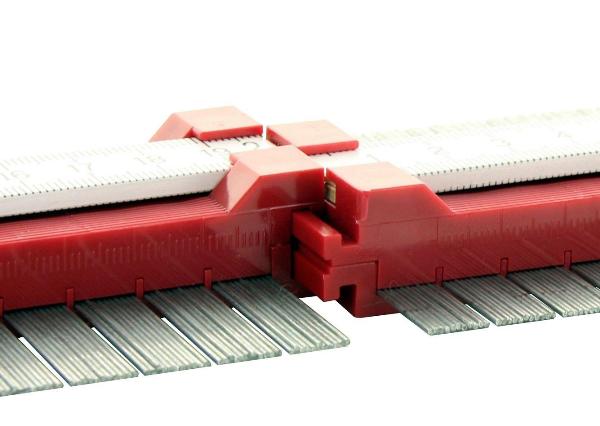

Can also be connected together at an angle

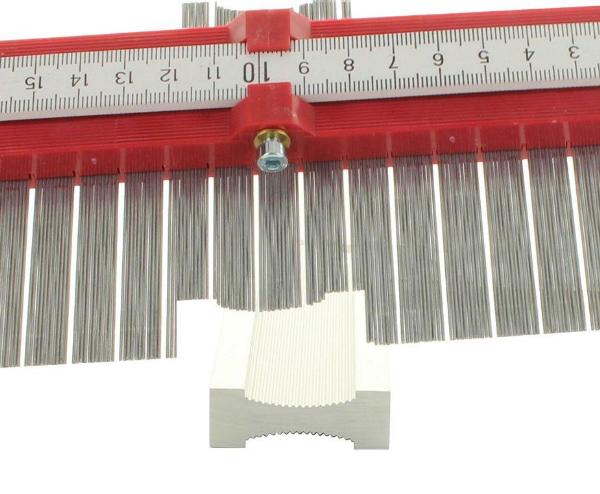

Simple scanning of complex contours
Elements are pluggable

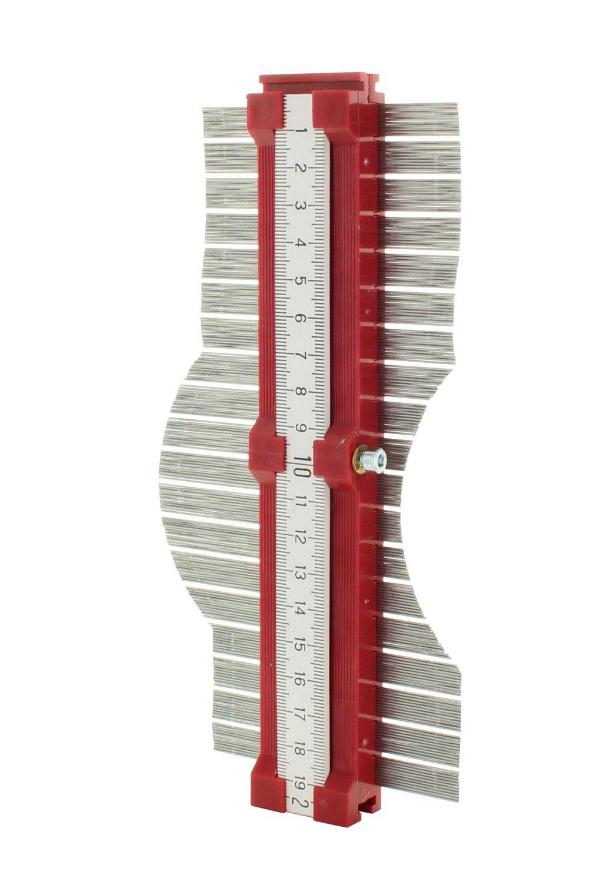

The scanned profile line can be easily transferred to a workpiece thanks to the flat support
