0,00 €
Recommended retail price without VAT.
Article No. R138
Buy safely

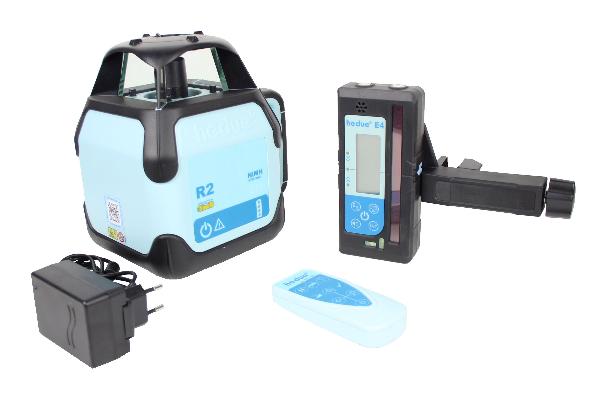

Rotation laser hedue R2 in systainer with receiver E4
2021 - 2023
Horizontal and vertical self-leveling rotating laser with high accuracy (0.6 mm / 10 m).
The hedue R2 construction laser can be used both indoors and outdoors. The robust housing is protected against impact and rain. Within the large self-levelling range of 5°, the R2 rotating laser automatically aligns itself both horizontally and vertically. With one horizontal and one vertical tripod thread, the rotating laser can be operated on a tripod without additional adapters.
This rotating laser has radically simplified operation. There are only two buttons on the construction laser itself: on/off and anti-shake. Additional functions are only provided with the remote control. This makes it possible for an occasional user to leave the device without the remote control. You then have the security of knowing that the device can only be operated in self-levelling rotation. Incorrect measurements caused by incorrect operation are then ruled out. Compliance with laser safety regulations is also ensured.

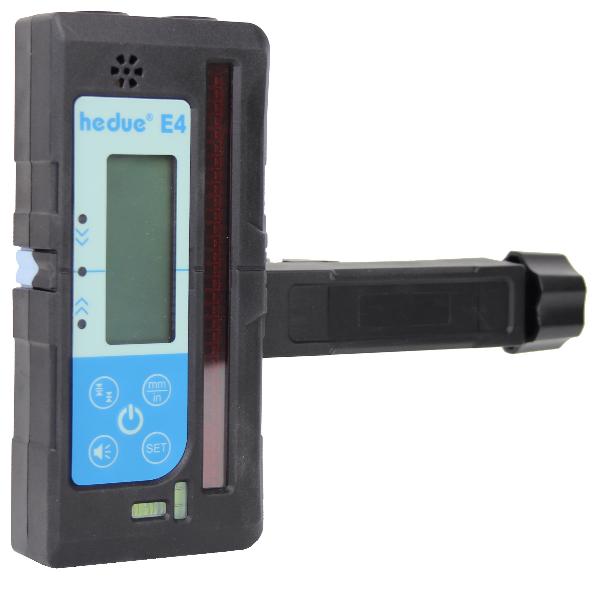

With our best laser detector. The hedue E4 laser detector with digital display for quickly measuring and correcting height differences. The large reception range of 127 mm is an additional aid.
Warranty / Months : 24
Features
- Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical. - Rainproof housing.
- Tracking of laser lines with the line function S2/S3.
Switch from rotation at 600 rpm to the scan function with 10°, 25° or 50° opening angle. In the interior you have a clearly visible laser line, which you can direct with the arrow keys to the left or right. - Manual tilting of the X and Y axis.
You can switch off the level control. The device then rotates in any inclined position. Fine adjustment of the inclination is then possible with the four arrow keys. - Continuous operation with power supply via the charging socket
- Display of slopes by switching off the self-levelling function.
- Can be used on tripods and wall mounts with 5/8" thread.
- Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate. - Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy. - Working in bright light and at long distances in conjunction with laser detectors.
- Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access. - Additional reference beam
The reference beam is exactly at a 90° angle to the rotating laser beam. This laser beam can be used for plumbing or aligning walls. - Horizontal and vertical tripod thread.

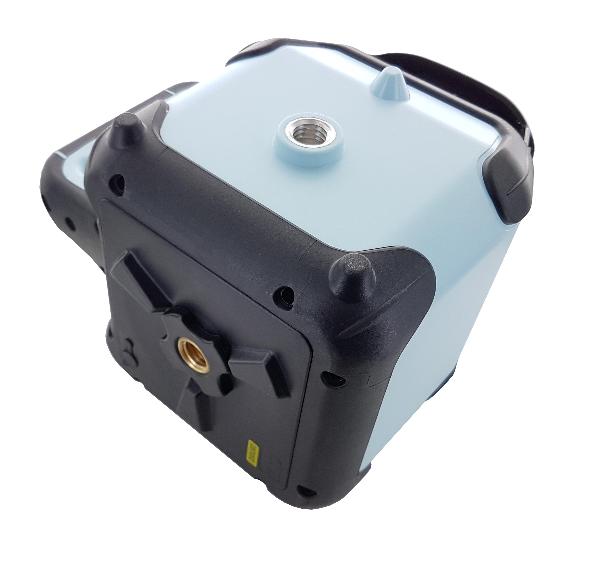

With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Fast and exact alignment via the sighting device.
The aiming device allows you to precisely align the construction laser in alignment. - Quiet belt drive that is gentle on the material.
The rotary laser is driven by an efficient belt drive. Compared to conventional gear drives, this is more gentle on materials and much quieter. - With charge level indicator.
- Increased protection through the integrated laser head cover.

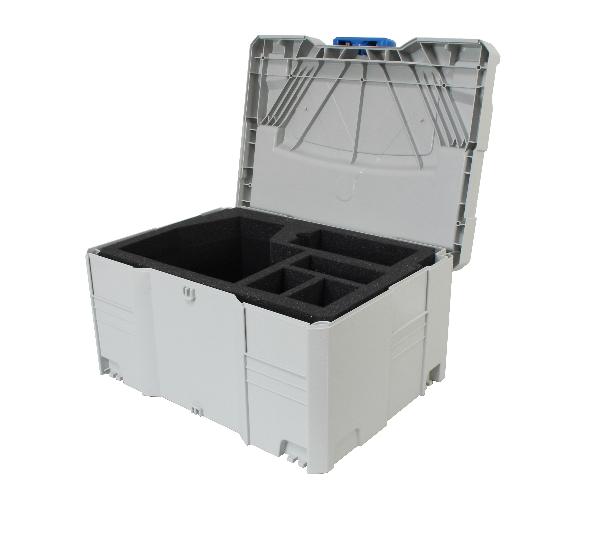

The plumb beam is not always needed. Therefore, you can close the upper exit window with a slider. This prevents the uncontrolled radiation of the plumb bob. - Supplied in the systainer transport and storage system. Includes laser detector with holder, remote control, charger and rechargeable battery.
- The digital laser detector shows the height difference to the laser line in mm or inches.
Video
Specifications
|
|
Working area with laser detector
|
500 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Vertical self-levelling range
|
5°
|
|
|
Levelling accuracy
|
0,6 mm / 10 m
|
|
|
Opening angle of the line function
|
10°, 25°, 50°
|
|
|
Remote control reception range
|
20 m, 360°
|
|
|
Operating time in hours
|
20
|
|
|
Operating temperature
|
-20°C - +50°C
|
Usable without safety restrictions thanks to the harmless laser class II.
The digital laser detector shows the height difference to the laser line in mm or inches.
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
Horizontal and vertical tripod thread.
Supplied in the systainer transport and storage system. Includes laser detector with holder, remote control, charger and rechargeable battery.
