Article No. R177
Buy safely
Rotary laser hedue R3
2011 - 2016
Rotating laser with digital tilt adjustment of the X and Y axes in percent.
This fully automatic machine combines all the functions of a rotary laser with a digital control system. You can set your default values as a percentage for setting up slopes and inclines. The hedue R3 rotary laser moves to the selected setting fully automatically at the push of a button. It couldn't be more efficient and precise.
Both the digital axis inclination and all other functions, such as the adjustable rotation speed and determination of the line length, can be controlled 360° around the device by remote control. To limit sources of error during leveling, the R3 has a vibration monitor that can be switched on and off as required.
Features
- Horizontal self-levelling by servomotors up to 5° inclination.
- Fully automatic vertical self-levelling.
- Display of slopes by switching off the self-levelling function.

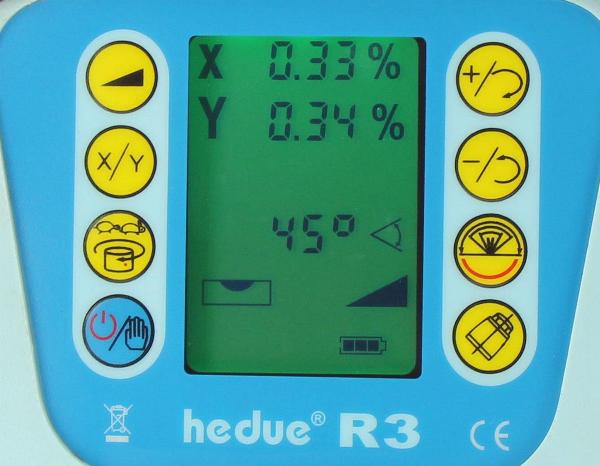

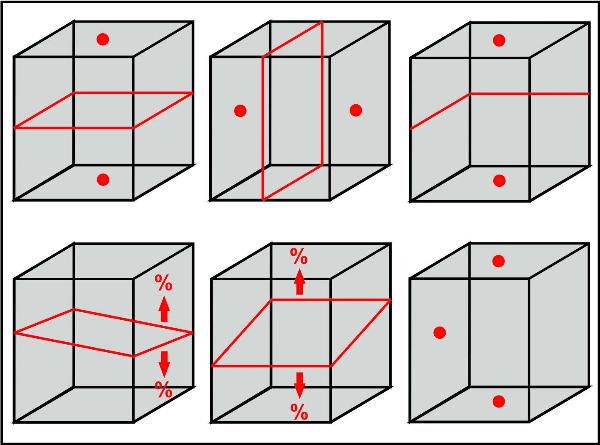

- Digital inclination of the X and Y axis with percentage setting.
- Long operating time thanks to integrated battery pack.
- Working in bright light and at long distances in conjunction with laser detectors.
- Rainproof housing.
- Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate. - Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- Can be used on tripods and wall mounts with 5/8" thread.
- Better visibility of the laser line through the adjustable rotation speed.
- Continuous operation with power supply via the charging socket
- Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod. - Tracking of laser lines and laser points.

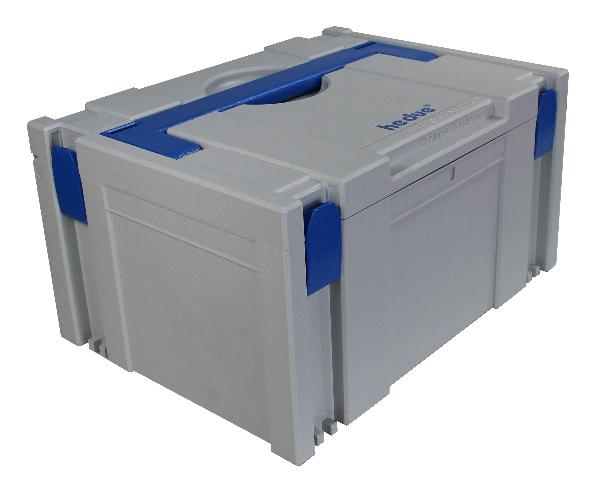

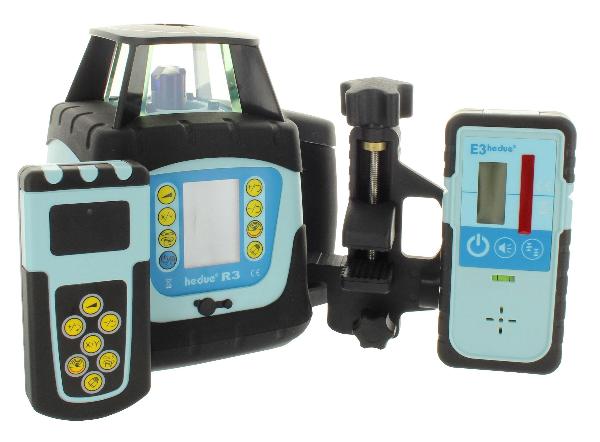

- Supplied in the systainer transport and storage system. Includes laser detector with holder, remote control, USB charging cable and USB charger.

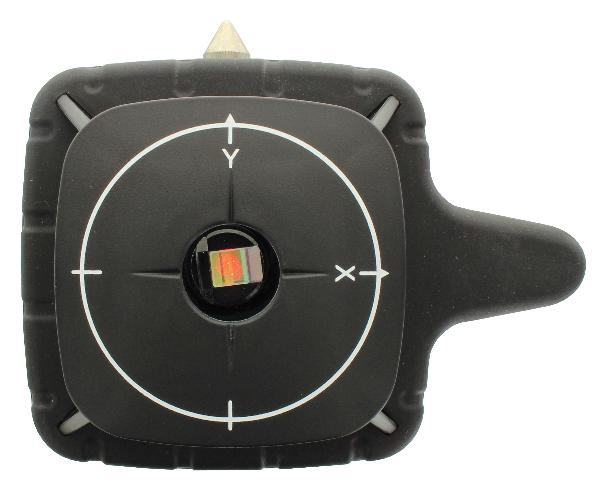

- Positioning of the device and vertical plumbing with the plumb point.
Video
Specifications
|
|
Working area with laser detector
|
500 m
|
|
|
Self-levelling range horizontal
|
5°
|
|
|
Vertical self-levelling range
|
5°
|
|
|
Levelling accuracy
|
1 mm / 10 m
|
|
|
Rotation speeds rpm
|
0, 60, 120, 300, 600
|
|
|
Remote control reception range
|
20 m, 360°
|
|
|
Operating time in hours
|
20
|
|
|
Operating temperature
|
-20°C - +50°C
|
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
Digital inclination of the X and Y axis with percentage setting.
Working in bright light and at long distances in conjunction with laser detectors.
Digital inclination of the X and Y axis with percentage setting.
Positioning of the device and vertical plumbing with the plumb point.
Supplied in the systainer transport and storage system. Includes laser detector with holder, remote control, USB charging cable and USB charger.
