Article No. R187
Buy safely

Rotary laser hedue S3 without accessories
2016 - 2024

Digital tilt laser with USB connection and Li-Ion battery.

Mögliche Liefertermine	Ihr Preis

Digital adjustment of the inclination (inclination laser).

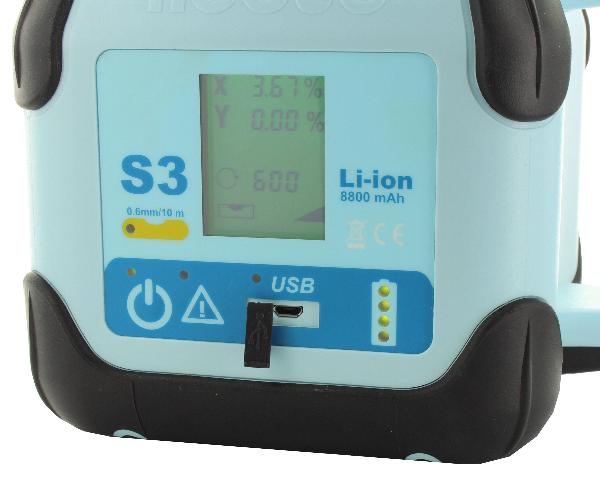

With the hedue S3 rotation laser, you can preselect the desired percentage value for the inclination on the display. The servomotors then automatically tilt the axis to this inclination. You can tilt both the X-axis and the Y-axis up to 10% each. You can tilt both axes together up to a total of 13%.

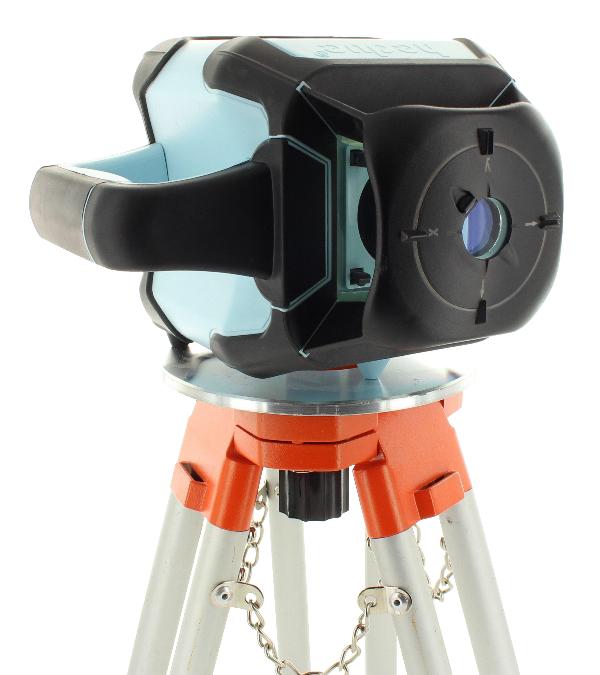

Two tripod threads.
The hedue S3 rotating laser has one tripod thread each for horizontal and vertical use on a tripod.

QR code on the device.
The robust hedue S3 construction laser is precise with a levelling accuracy of 1 mm at 10 m. You can rely on this, because we at hedue in Germany calibrate every rotating laser before delivery. You can retrieve the certificate via the QR code affixed to the device.

Energy for a whole working week.
The hedue S3 rotating laser is powered by an 8,800 mAh Li-Ion battery pack. This is sufficient for a running time of 60 hours and can be recharged via the USB port.

Simple operation.
This rotating laser has radically simplified operation. There are only three buttons on the construction laser itself: on/off, anti-shake and a button for selecting the laser class. Additional functions are only provided with the remote control. This makes it possible for an occasional user to leave the device without the remote control. You then have the security of knowing that the device can only be operated in self-levelling rotation. Incorrect measurements caused by incorrect operation are then ruled out.

Accessories
Spare parts
Warranty / Months : 24
repair at a flat rate of 189,00 €
bei Sturzschaden oder nach Ablauf der Garantie.
Calibration to a firm price of 39,00 €

Features

Digital inclination of the X and Y axis with percentage setting.
Usable without safety restrictions thanks to the harmless laser class II.
Due to legal regulations, users of laser class 3R and above must be specially trained. Among other things, the work area must be specially marked and secured against access.
Can be used on tripods and wall mounts with 5/8" thread.
Horizontal and vertical tripod thread.
With the two 5/8" threaded sockets on the base and back of the device, you can mount the construction laser both horizontally and vertically on a construction tripod.
Fast and exact alignment via the sighting device.
The aiming device allows you to precisely align the construction laser in alignment.
Quiet belt drive that is gentle on the material.
The rotary laser is driven by an efficient belt drive. Compared to conventional gear drives, this is more gentle on materials and much quieter.
Rainproof housing.
Tracking of laser lines with the line function S2/S3.
Switch from rotation at 600 rpm to the scan function with 10°, 25° or 50° opening angle. In the interior you have a clearly visible laser line, which you can direct with the arrow keys to the left or right.
With charge level indicator.
Longer mileage and increased safety with the pause button.
Use the Pause button to stop the rotation and turn off the laser beam. The level monitoring remains active and permanently checks the exact alignment of the machine. This allows you to restart the rotation at any time after an interruption in work. This increases safety on busy construction sites and spArt also increases energy.
Long operating time thanks to integrated Li-Ion battery.
The lithium-ion battery has a high energy density, is thermally stable and has practically no memory effect. It is the ideal battery for your everyday life on the construction site. Apart from the short charging times, the long service life is another argument in favour of this battery.
Horizontal and vertical self-levelling by servomotors up to 5° inclination.
The laser automatically levels horizontal and vertical.
Tested accuracy with free certificate on the device. (QR Code readable with smartphone.)
The devices are individually tested and delivered with a calibration certificate.

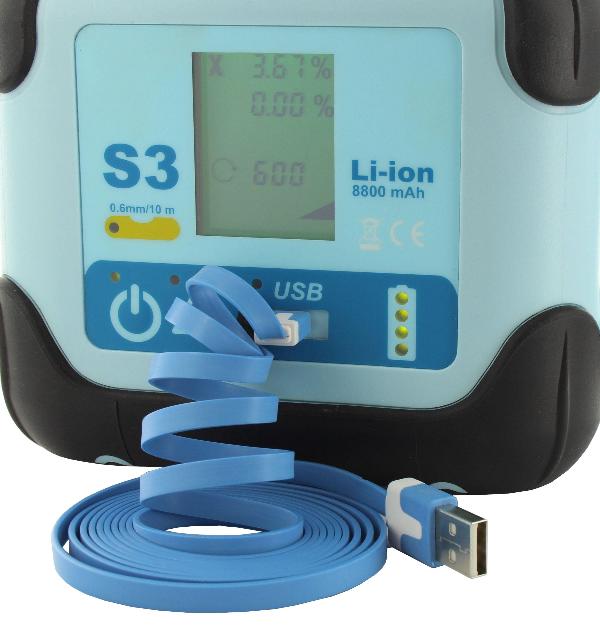

Flexibility in charging thanks to micro USB charging socket.
You can find a micro USB port in many devices today, for example in smartphones, eBooks or laser distance meters. This technology is both ecological and economical. This is because the interchangeability of chargers protects the environment and your wallet. You are also independent of when and where you charge your device.

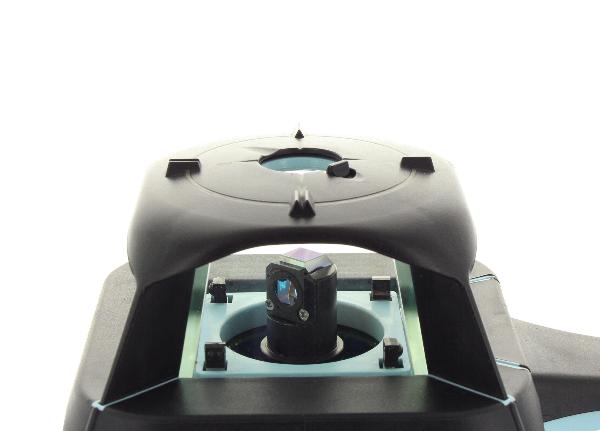

Increased protection through the integrated laser head cover.
The plumb beam is not always needed. Therefore, you can close the upper exit window with a slider. This prevents the uncontrolled radiation of the plumb bob.
Continuous operation with power supply via the charging socket
Working in bright light and at long distances in conjunction with laser detectors.
Display of slopes by switching off the self-levelling function.
