Line laser hedue L1 Set
2012 - 2025

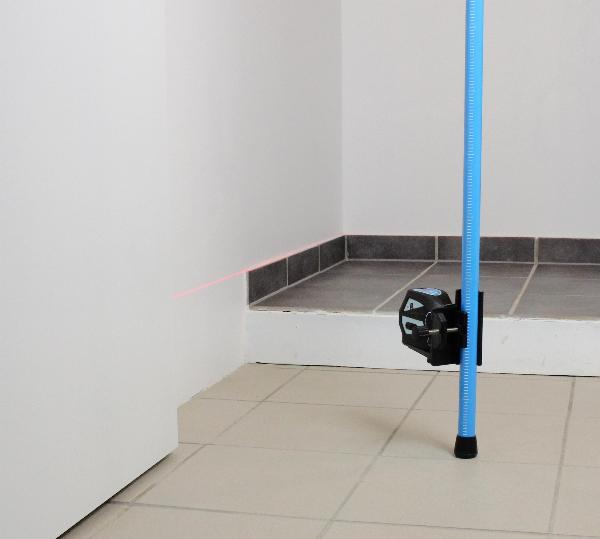

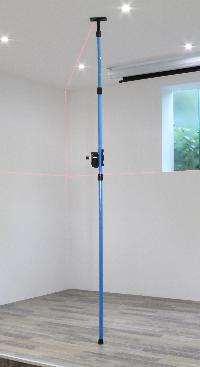

Cross line laser L1 with practical telescopic support pole for indoor work.
The hedue L1 self-levelling line laser impresses with razor-sharp horizontal and vertical line reproduction, which can also be switched separately. It is equipped with an acoustic and visual warning when leaving the leveling range. You can also switch off the self-levelling function at the touch of a button in order to display slopes. The battery status indicator lets you know when it is time to change the battery. The rubberized shell offers optimum protection against construction dust and vibrations.

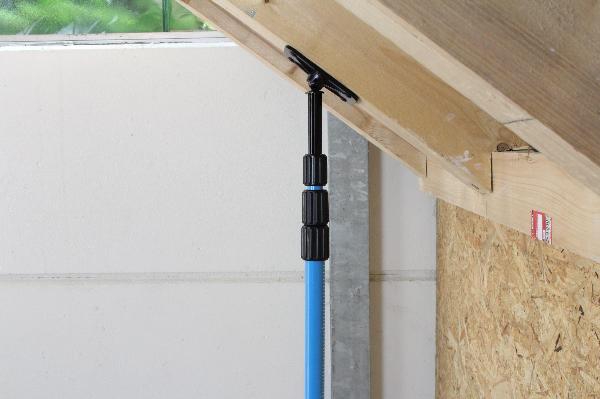

Thanks to the telescopic extension and the spring-loaded base plate, installing the telescopic support pole is child's play. It can be installed quickly, stably and accurately in the smallest of spaces. Thanks to the quick-clamping mechanism, the device bracket can be infinitely adjusted along the entire length of the column. The rubberized floor and ceiling plates prevent scratches on sensitive floor coverings and prevent the telescopic support pole from slipping on smooth surfaces.
Warranty / Months : 24
Features
- Fast and exact self-levelling via the magnetic pendulum.
- Separate switching of the laser diodes.
- Avoidance of measuring errors through a warning signal when leaving the self-levelling range.
- A horizontal laser line for levelling tasks.
- A vertical laser line for alignment and alignment.
- Infinitely height adjustable
- With rubberised floor and ceiling panels

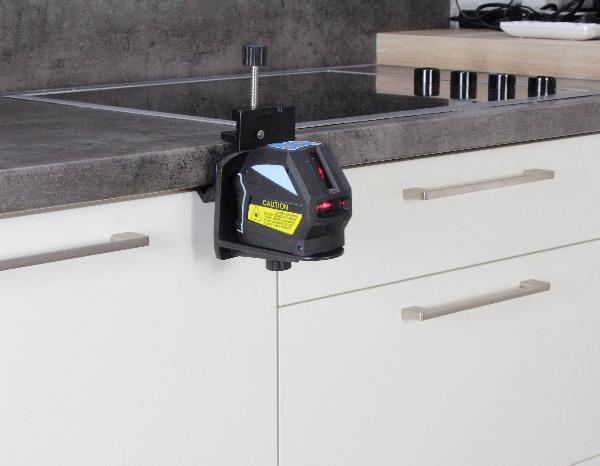

- Can be used as a wall mount and vertical mount
Video
Specifications
|
Self-levelling range horizontal
|
3°
|
|
Vertical self-levelling range
|
3°
|
|
Levelling accuracy
|
3 mm / 10 m
|
|
Working radius without laser detector
|
10 m
|
|
Width of the laser line at 8m
|
3 mm
|
|
Operating time in hours
|
6
|
|
Tripod thread
|
5/8" & 1/4"
|
|
Working radius with laser detector
|
50 m
|
|
Accuracy of the 90° angle
|
3 mm
|

Infinitely height adjustable
Fast and exact self-levelling via the magnetic pendulum.
With rubberised floor and ceiling panels
Can be used as a wall mount and vertical mount
